Transcend TS128GMSM360 Arkusz Danych

MSM360 – SATA III 6Gb/s mSATA mini SSD Transcend MSM360 series are mSATA mini Solid State Drives (SSDs) with high performance and quality Flash Mem

ATA Command Specifications FLUSH CACHE (E7h) This command is used by the host to request the device to flush the write cache. If there is data in t

NOP (00h) The device shall respond with command aborted. For devices implementing the Overlapped feature set, subcommand code 00h in the Features r

Security Mode Feature Set SECURITY SET PASSWORD (F1h) This command set user password or master password. The host outputs sector data with PIO data

SECURITY DISABLE PASSWORD (F6h) Disables any previously set user password and cancels the lock. The host transfers 512 bytes of data, as shown in t

Identify Device Information Default Value Word Address Default Value Total Bytes Data Field Type Information 0 0040h 2 General configuration 1 XXXX

Word Address Default Value Total Bytes Data Field Type Information 68 0078h 2 Minimum PIO transfer cycle time with IORDY flow control 69 4000h 2 Ad

169 0001h 2 Data Set Management supported 170-216 XXXXh 94 Reserved 217 0001h 2 Non-rotating media (SSD) 218-221 0000h 8 Reserved 222 107Fh 2 Tran

SMART Command Support Value Command Value Command D0h Read Data D5h Read Log D1h Read Attribute Threshold D6h Write Log D2h Enable/Disable Autosa

SMART DATA Structure BYTE F / V Description 0-1 X Revision code 2-361 X Vendor specific 362 V Off-line data collection status 363 X Self-test ex

SMART Attributes The table below shows the vendor specific data in byte 2 to 361 of the 512-byte SMART data Attribute ID (hex) Raw Attribute Va

Specifications Note: Maximum transfer speed recorded * 25 °C , test on GA-Z87Z-UD3H, 4GB, Windows® 8.1 x64 with AHCI mode, benchmark utility Cry

Ordering Information The above technical information is based on commercial standard data and has been tested to be r

Revision History Version Date Modification Content Modified Page V1.0 2015/02/26 Formal release

Actual Capacity Model P/N User Max. LBA Cylinder Head Sector TS128GMSM360 250,069,680 16,383 16 63 Power Requirements Input Voltage 3.3V  5% Mod

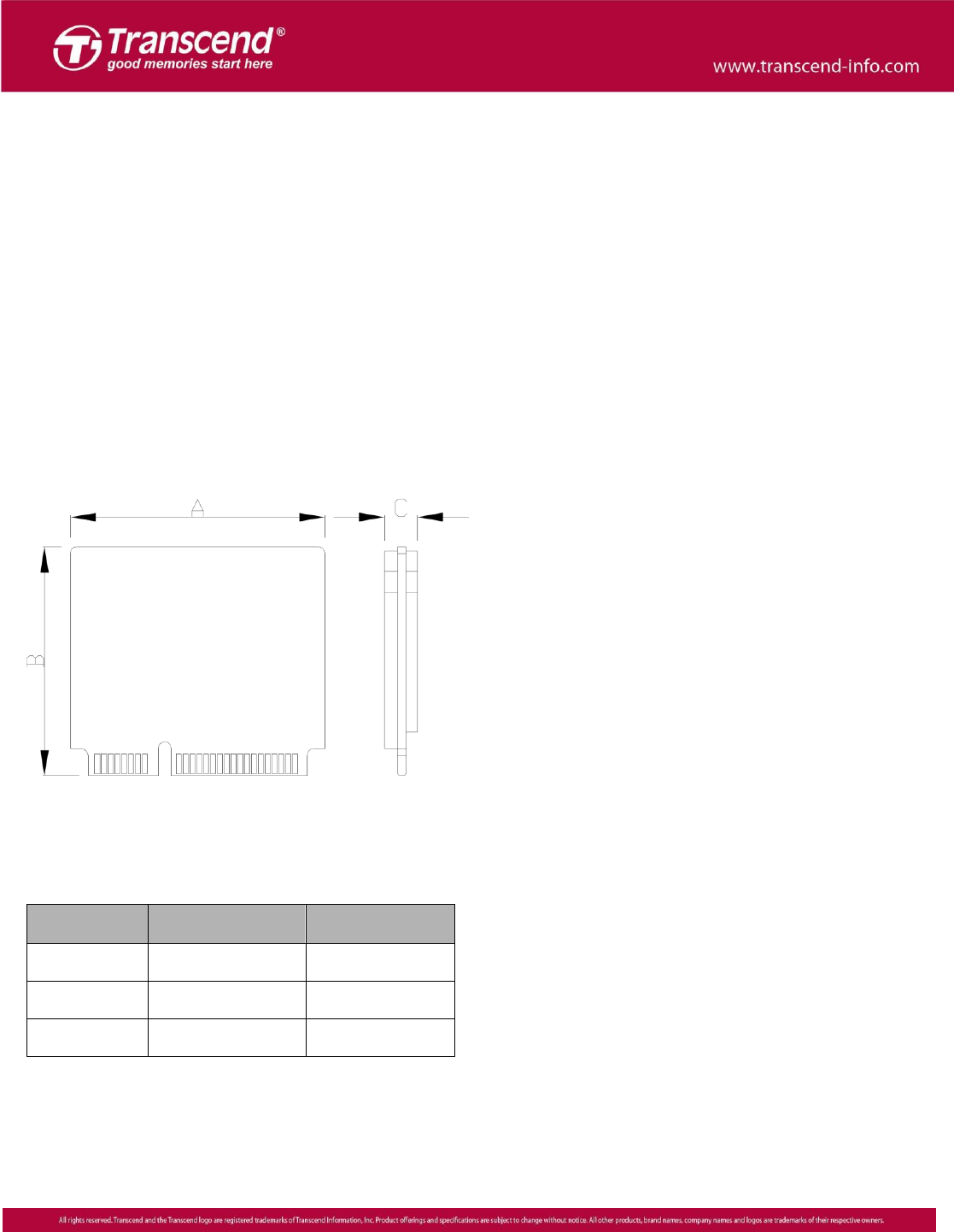

Package Dimensions The figure below illustrates the Transcend MSM360 mSATA mini Solid State Disk. All dimensions are in mm. *Note: Tig

Pin Assignments Pin No. Pin Name Pin No. Pin Name 01 NC 02 3.3V 03 NC 04 GND 05 NC 06 NC 07 NC 08 NC 09 GND 10 NC 11 NC 12 NC 13 NC 14 NC 15 GND 16

Block Diagram SATA Host NAND Flash NAND Flash NAND Flash NAND Flash SSD Controller Flash Interface SATA Interface

Features Wear Leveling Algorithm The controller supports static/dynamic wear leveling. When the host writes data, the controller will find and use

ATA Command Register This table with the following paragraphs summarizes the ATA command set. Support ATA/ATAPI Command Code Protocol General Featu

Set Max Address F9h Non-data Set Max Set Password F9h PIO data-out Set Max Lock F9h Non-data Set Max Freeze Lock F9h Non-data Set Max Unlock F9h P
